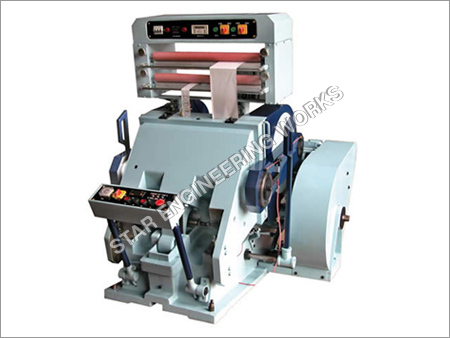

Hot Foil Attachment Die Cutting Machine

Hot Foil Attachment Die Cutting Machine
Hot Foil Attachment Die Cutting Machine
Product Code : 14
Product Description

Hot Foil Attachment Die Cutting Machine

Our vast industry experience make us proficient enough for manufacturing and offering a wide range of Hot Foil Attachment Die Cutting Machine for our patrons. In compliance with international quality standards, our entire extensive array of die cutting machine is manufactured using high quality materials & components. Widely demanded in offset printing and packaging industry, our offered Hot Foil Attachment Die Cutting Machine is well accredited in the market for its attributes like automatic lubrication system, overhead control panel and heavy duty quality casting.

Further Details:

What we provide with our Hot Foil Stamping Attachment with Die Cutting Machine:



  • Two Tables Complete.
  • Two Chase.
  • Standard Service Tool Box which contains all the needed Tools.
  • Machine made From Graded Casting /Fabricated Steel.
  • All moving parts on the machine are protected by Approved Safety Guards.
  • The digital impression counter allows an accurate check to be kept on the number of impressions made by the Machine.
  • The timing device can be set to give a variable period from 0.5 to 10seconds. During this time the platen remains stationary in the open position as well as the close position before automatically resuming motion at the end of the set dwell period.
  • Double DWELL Facility.
  • Wrap Around Safety Device.
  • Both Side Hardened and Ground-True Imported Make Ready Plate
  • Automatic lubrication system.
  • Adjustable guide system.
  • Trip bar to stop the Machine Immediately.
  • Side arm guard.
  • Fly wheel drive belt full guard.
  • Electro-Magnetic Clutch and Brake standard with all machines.
  • Jam Release System at Extra Cost.

Features
Sticker Cutting:- Perfect cut is ideal. The die blade should cut through the face paper & the adhesive should come to stop just before the release of paper. We make it cent percent possible by introducing these features.

Micropressure Adjuster:- To keep uniform pressure on left & right side of microns.

Steel Rails: - Movable platen runs on special grade hardened ground steel rails to keep uniform pressure up & down.

Imported Plate: - It is a part of our export model standard accessories with even surface in microns, which plays key role in cutting perfect stickers, soft crease, PVC sheets, embossing, perfect hot foil stamping impression & any precise jobs.

Platen:- Wide opening of platen signifies operation of feedings.

  • Full platen size die cuts perfectly because moving platen is designed half round to give perfect Punch on each and every parts of extra heavy duty.
  • Extra heavy duty clutch wheel, jumbo sized connecting arms, with bronze phosphorus bushes release platen frequently that cuts dies easily.
  • Hot Foil Stamping Attachment With Die Platen Punching Machine

 Hot Foil Stamping Machine Attachments :- Attachment of hot foil unit with 1 Step, 2 Step, 3 Step or 4 Step.

Heating Plate

  • 3 Chambers heating plate having 3 separate compartments with separate circuit on control panel to operate any of three or all the three compartment at the same time. It plays key role in minimizing wastage of electricity.

  • Holes are illustrated on complete heating plate to fix blocks with screw instead of pasting. It gives perfect registration on each & every impression.

  • Heating plate is fitted with digitally displaced machine with thermostatically heaters.

Revinder Unit:- Revinder units are separate for each foils.

Jumpers:- Jumpers are designed with advanced technology to minimize wastage of foils.

Model


Foil-Star-35


Foil-Star-40


Foil-Star-46


Foil-Star-53

Platen Size

25 x35 in

28 x 40in

36 x 46in

39 x53in

Inside Chase

22 x32 in

25 x37 in

32 x42 in.

36 x50 in.

Impressions per hour(Approx)

1800 Max

1700 Max

1300 Max

1200 Max

H.P Required

3H.P

5 HP

7.5 HP

7.5HP

Pressure Exerted during Impression

180 Ton

200 Ton

260 Ton

300 ton

Floor Space Required

60 x61 in

64 x 71 in

71 x78 in

73 x85 in

Weight

3.6 Ton

4.5 Ton

5.5 Ton

6.5 Ton


Main Features

  • Three modes of operation:
  • Single, continuous & timed dwell
  • Hardened Ground Steel Cutting Plate with quick release for fast make-ready.
  • Worm gear jam release system (Costs Extra)
  • Micro pressure adjustment

Safety features:

  • Foot Switch.
  • Trip Bar.
  • Overhead Guard.
  • Knee Guard.
  • Working Manual.
