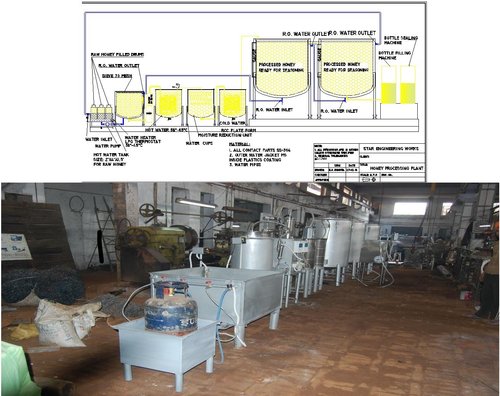

Honey Processing Plant

Product Description

1. Heating vessel for L.P.G cylinder.

2. Preheating Unit of raw honey temperature Controlled digitally by LPG and electric heater.

3. S.S Honey pump for transfer of raw honey.

4. Liquefaction Vessel- Double Jacket with pre filter SS-70 mesh temperature controlled digitally by Heater.

5. U.V Tube set for sterilization.

6. Pasteurization Vessel. The S.S 304 coil is Submerged in hot water. The temperature is Digitally controlled by heater.

7. Moisture reduction unit

8. Cooling Unit-The S.S 304 coil is submerged in Running cold water. The temperature is digitally visible

9. Two settling vessels of S.S Double Jackets Of total 1000kg capacity are provided to settleThe honeys for required 5-6 days. Scum come On top of honey is removed manually beforeFilling.

10. Bottle Filling Machine for Honey-electric load 1.5 KW.

11. Water Pump for circulation of hot water from Pre heating unit-0.25Kw.
